pNeuton Model S

Ventilator

Jump to:

Key features
Benefits
Videos
Info & Resources
Ordering Information

Ventilation with CPAP for EMS ground and air transport, and hospital settings

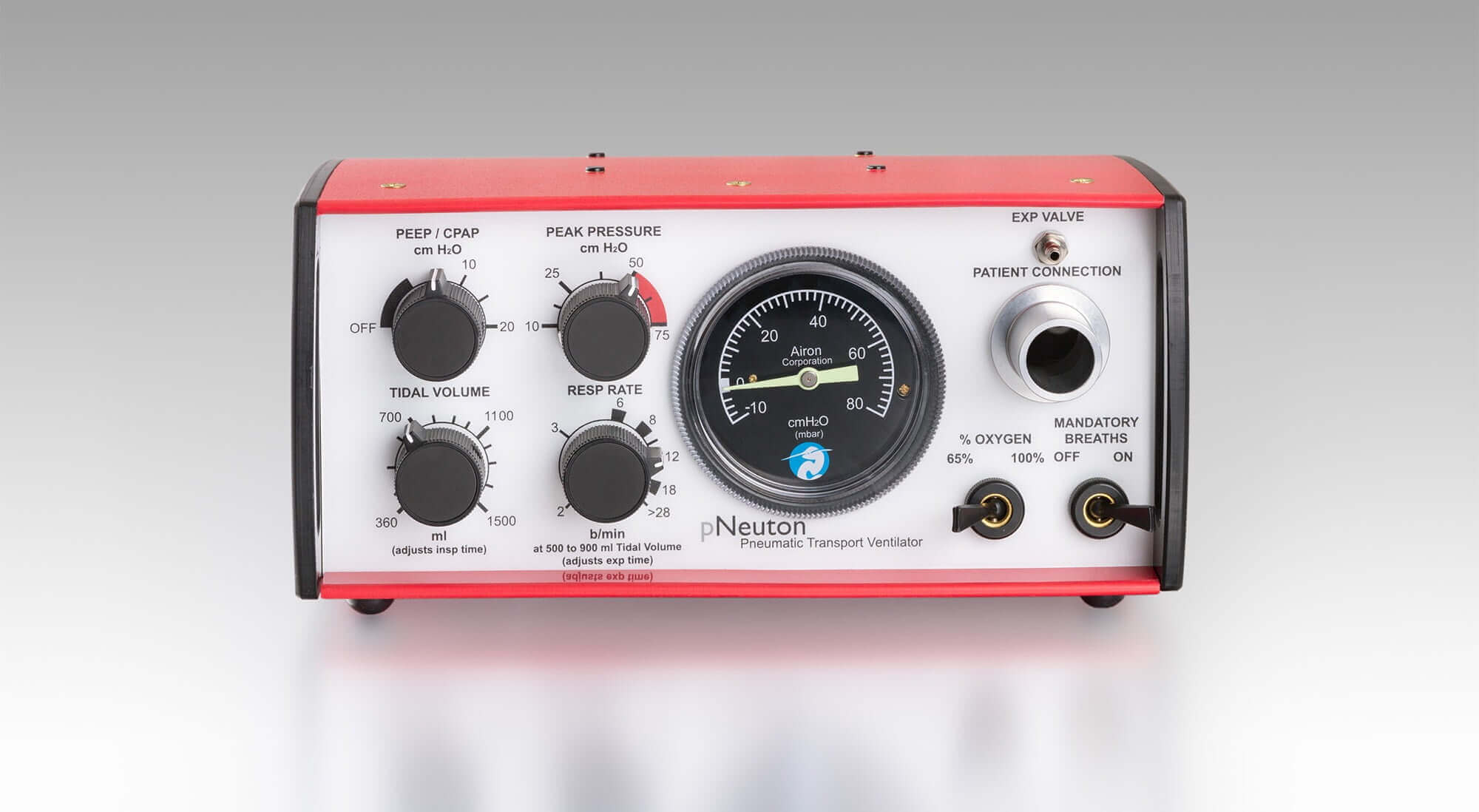

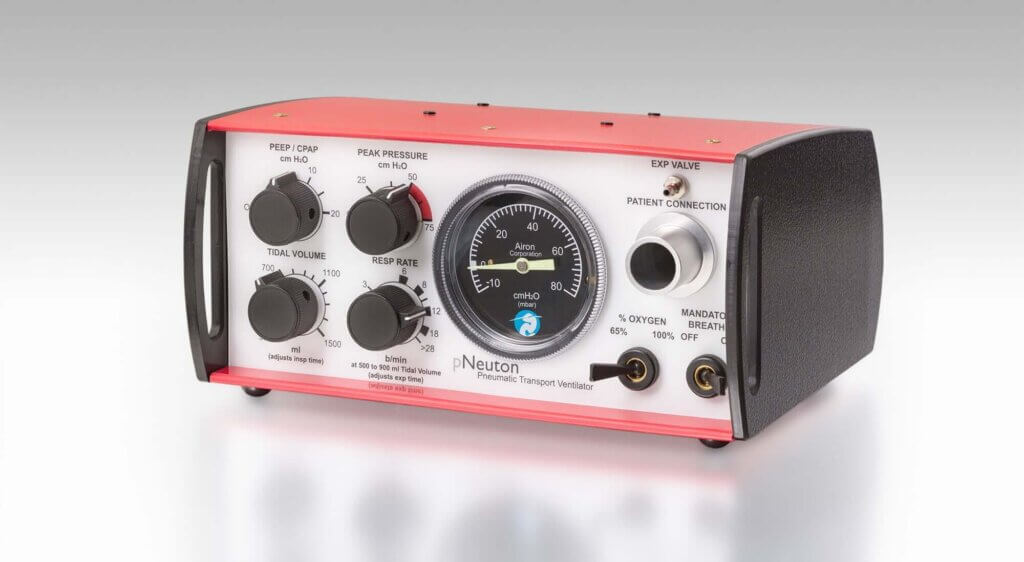

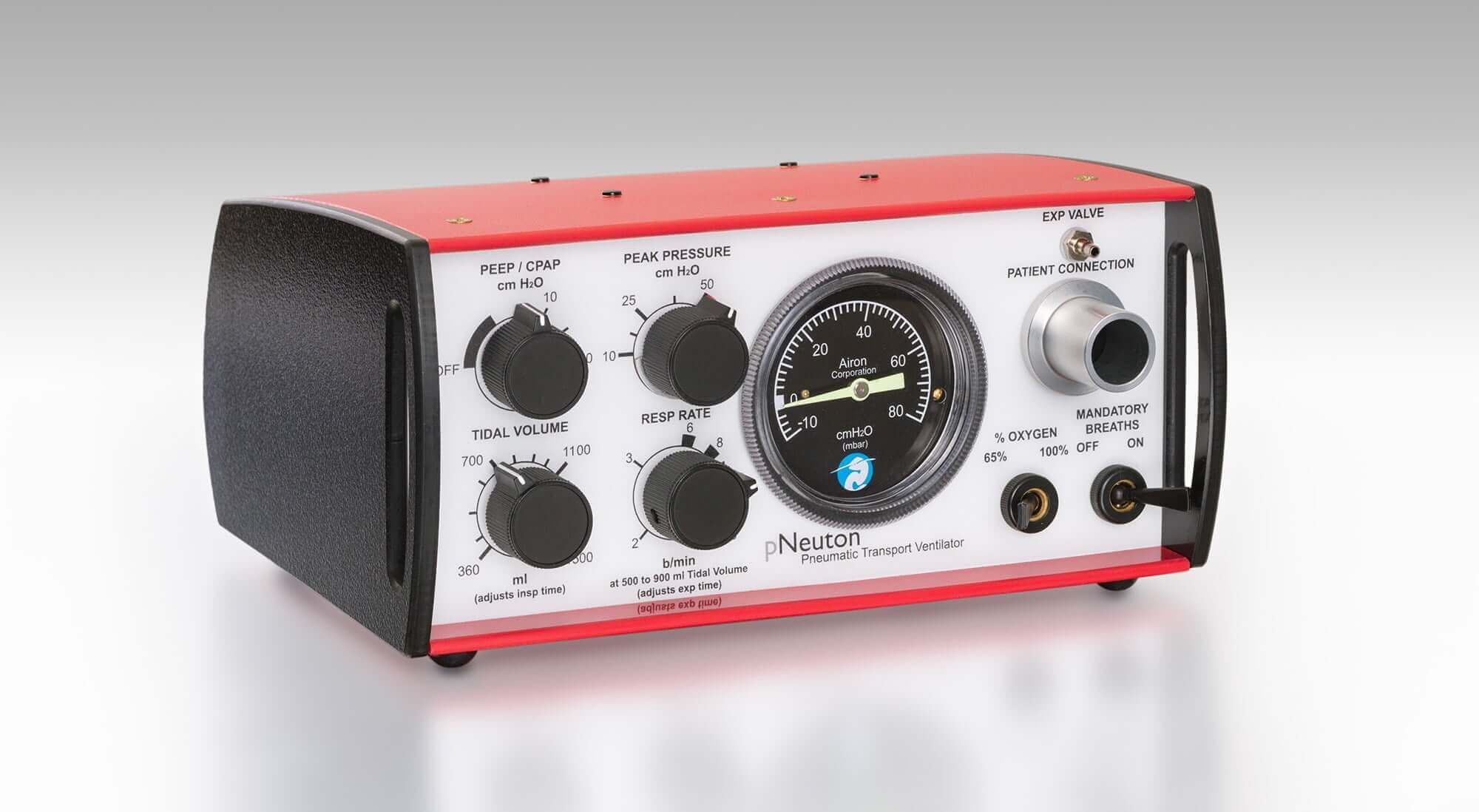

The pNeuton Model S Ventilator with CPAP (Continuous Positive Airway Pressure) provides mask CPAP plus volume or pressure ventilation for pediatric to adult patients in pre-hospital and hospital environments. Built tough for the rigors of EMS ground and air transport.

UNIQUE ADVANTAGES

  • Fully pneumatic – No batteries or electricity needed
  • CPAP for EMS ground and air transport
  • Pediatric to adult patient support in pre-hospital and hospital settings
  • Mask CPAP plus volume or pressure ventilation
  • 65% oxygen delivery significantly extends transport times for the most difficult patients
  • MRI conditional – 3 T or less
  • Small, compact, lightweight, portable
  • Easy-to-use controls
  • Made in Melbourne, Florida, USA

APPLICATIONS

pNeuton Model S is designed for use in pre-hospital and hospital environments

• EMS ground and air transport

• ER and trauma
• MRI
• OR
• ICU
• Intra-hospital transport

<
>

Key Features

Versatile Respiratory Care

For early intervention, the built-in CPAP system allows you to start with face-mask CPAP and seamlessly switch to mechanical ventilation if needed without interruption. The built-in high output demand flow CPAP system with automatic sensitivity ensures critical care ventilation needs are optimized for spontaneous and mandatory breaths.

Enhanced Patient Comfort

Fully pneumatic, the pNeuton S does not require batteries or electrical power so it is always ready for operation.

Built For Transport

With simple-to-use controls – Tidal Volume, Respiratory Rate and Pressure Limit – the pNeuton S accommodates even the most challenging patients in respiratory distress.

Ordering information

Benefits

For the patient

  • Provides invasive or non-invasive patient support
  • Low patient Work of Breathing with peak flow of up to 140 L/min to meet patient needs
  • 100% or 65% to match patient oxygen requirements
  • Switch from mask CPAP to mechanical ventilation seamlessly and without interruption
  • Low-profile, easy-seal mask reduces facial pressure

For You, the Healthcare provider

  • Calibrated CPAP and oxygen controls for easy operation
  • MRI conditional up to 3 T – place right next to the scanner with remote alarm output for the control room
  • Manometer to monitor patient pressure and effort
  • Built-in CPAP / PEEP system with automatic sensitivity for changing patient needs; no need for external CPAP valves
  • Night visible pressure gauge for patient monitoring
  • Monitor CO2 with invasive/non-invasive ventilation
  • Oxygen powered – no batteries to change
  • Rugged and lightweight (6 lbs / 2.7 kg)
  • Protection for the caregiver from patient exhalation using the bacteria / viral filter

For Your budget

  • Two oxygen levels; conserve oxygen with 65% setting
  • 45-minute CPAP run time on a D cylinder
  • Demand flow CPAP system with minimal wasted oxygen
  • Economical patient circuits save on operating costs
  • No batteries or electronics decrease maintenance cost

Product videos

Additional information & Resources

Specifications

  • Pneumatically operated for use on pediatric and adult patients > 23 kg
  • Demand flow system for spontaneous breathing to 140 L/min
  • Pressures displayed on manometer
  • Modes of Operation: CMV, IMV, CPAP, Pressure Limit
  • Mandatory breath flow rate is fixed at 36 L/min
  • MRI conditional – 3 T or less, maximum spatial gradient magnetic field of 720-gauss/cm or less, no gauss line restriction


AUDIBLE AND VISUAL ALARMS

  • All pneumatic alarm system (no batteries – requires minimum 30 psi / 2 bar gas supply pressure)
  • Low gas source pressure
  • If source gas drops below 40 psi (2 bar)
  • Continues operation as long as oxygen is available

Further Specifications

Gas supply
55 psi ± 15 psi (3.8 bar ± 1 bar)
Dimensions
4″ H x 8″ W x 6″ D (10 x 20 x 15 cm)
Weight
6 lbs. (2.7kg)

Meets international standards

  • ASTM F 920-85 Minimum Performance and Safety Requirements for Resuscitators Intended for use with Humans
  • ISO 10651-5:2006 Lung ventilators for medical use – Particular requirements for basic safety and essential performance – Part
  • 5: Gas-powered emergency resuscitators
  • IEC 60529:2001 Degrees of protection provided by enclosures, level IPX4

Control Settings

Mandatory Breaths
ON or OFF
Respiratory Rate
2 to 50 bpm
Tidal Volume
360 to 1,500 ml
Peak Pressure
10 to 75 cm H2O (mbar)
PEEP/CPAP
0 to 20 cm H2O (mbar)
Oxygen
100% or 65%
Regulatory Compliance

International Regulatory Compliance Information

Under regulatory compliance, our goal is to take steps to comply with relevant laws, policies, and regulations for medical device manufacturing and marketing Airon products. All Airon products are designed, manufactured, and supported based upon sound quality procedures. Every device is CE marked as well as USA FDA cleared.

Product Certification and Approvals

USA – FDA Free Sale Certificate – Certificate to Foreign Government

Canada – Medical Device Licenses
pNeuton ventilator license | patient circuit license

Europe – CE Marking certificates – Airon EC Certificate

Europe – Declarations of Conformity

USA – FDA 510(k) cleared
pNeuton S

pNeuton Model S Product Brochure: English | Espanol | Deutsch | Francais

pNeuton Model S Operator’s Manual: English | Espanol | Deutsch | Francais

pNeuton Model S Operational Verification Procedure: English | Espanol | Deutsch | Francais

pNeuton Model S Self-Guided Presentation: English | Espanol | Deutsch | Francais

pNeuton Model S Introduction Video: English

pNeuton Model S Preventative Maintenance Program: English

pNeuton Model S Limited Warranty: English

Factory Rebuild Program: English

pNeuton Model S Environmental Testing: English

pNeuton Model S Usage with NBC Filter: English

MRI Certification pNeuton Ventilators: English

Compliance with US Army Airworthiness Standards: English

Real CPAP for EMS: English

Work of Breathing Comparison: English

pNeuton Bi-level Pressure Ventilation: English

Respiratory Care Test Comparison: English

NBC filter with pNeuton ventilators: English

Product Comparison Chart: English

Ordering Information

Ordering information for the pNeuton Model S Ventilator , it’s accessories and more.

Customer Service Email:

[email protected]

20002  pNeuton Model S Ventilator, device only

20012 pNeuton Model S USA Startup Kit; everything you need to get started using your new ventilator.

Kit includes:

  • (1) pNeuton Model S
  • (1) DISS high pressure oxygen hose, 8 foot, green
  • (1) Model S Travel Bag
  • (1) Box of 58011 patient circuits – 6 foot, large adult mask / head strap, single patient use, qty 10

20013 pNeuton Model S International Startup Kit; everything you need to get started using your new ventilator.

Kit includes:

  • (1) pNeuton Model S
  • (1) high pressure oxygen hose, 2.4, white, DISS connection on one end, customer specifies probe for other end (DIN, BOC, AGA or NIST)
  • (1) Model S Travel Bag
  • (1) Box of 58011 patient circuits – 1.8m, large adult mask / head strap, single patient use, qty 10

58001 Adult / pediatric, disposable, single use, 6 foot (1.8m), qty 15
58006 Adult / pediatric, disposable, single use, 6 foot (1.8m), expiratory filter, qty 15
58011 Adult / pediatric, disposable, single use, 6 foot (1.8m), large face mask / head strap, qty 10
58021 Adult / pediatric, disposable, single use, 6 foot (1.8m), large face mask / head strap, expiratory filter, qty 10 disposable, single use, 6 foot (1.8m), large face mask / head strap, expiratory filter, qty 10


SAFETY NOTE: Only Airon manufactured patient breathing circuits are approved for use with the MACS CPAP System.

CPAP Mask, adult / pediatric, non-vented full face mask, short term use, qty 20
58208 Small
58202 Medium
58211 Large

HERO CPAP Mask, adult / pediatric, non-vented full face mask, single patient use, qty 20
58220 Small
58221 Medium
58222 Large

21001 Mobile Stand, MRI compatible. Includes ventilator mounting plate and dual E cylinder holders.
21017 Bed Rail Mount, Model S
21018 Secure Pole / Rail Mount with ventilator mounting plate. *Meets European EN 1789 requirements.
21020 Travel Bag, Model S

21002 Rigid Wall Test Lung, 1 liter

21051 Oxygen Regulator, MRI compatible, high pressure D / E cylinders
21071 Oxygen Cylinder, E size, MRI compatible

Specialty Quick Connect Couplers
21100 Ohmeda Female, 3 inch hose
21101 Chemtron Female, 3 inch hose
21102 90 degree Male – Female DISS

Specialty Quick Connect Fittings
50347 Ohmeda Quick Connect
50348 Chemtron Quick Connect

97001 pNeuton S Operator’s Manual, English
97003 Spanish
97004 French
97005 German
Other languages available.
97021 User Resource CD
97025 Clinical Training DVD

pNeuton Model S in EMS Magazine 2009: English

CPAP supplement JEMS 2011: English

CPAP supplement comments: English

Mask CPAP – State of Science: English

CPAP Bibliography: English

Browse our online catalog or read through our downloadable brochure

The pNeuton ventilators/CPAP systems are critical care devices designed for use by healthcare professionals under the direction of a physician or healthcare provider.
