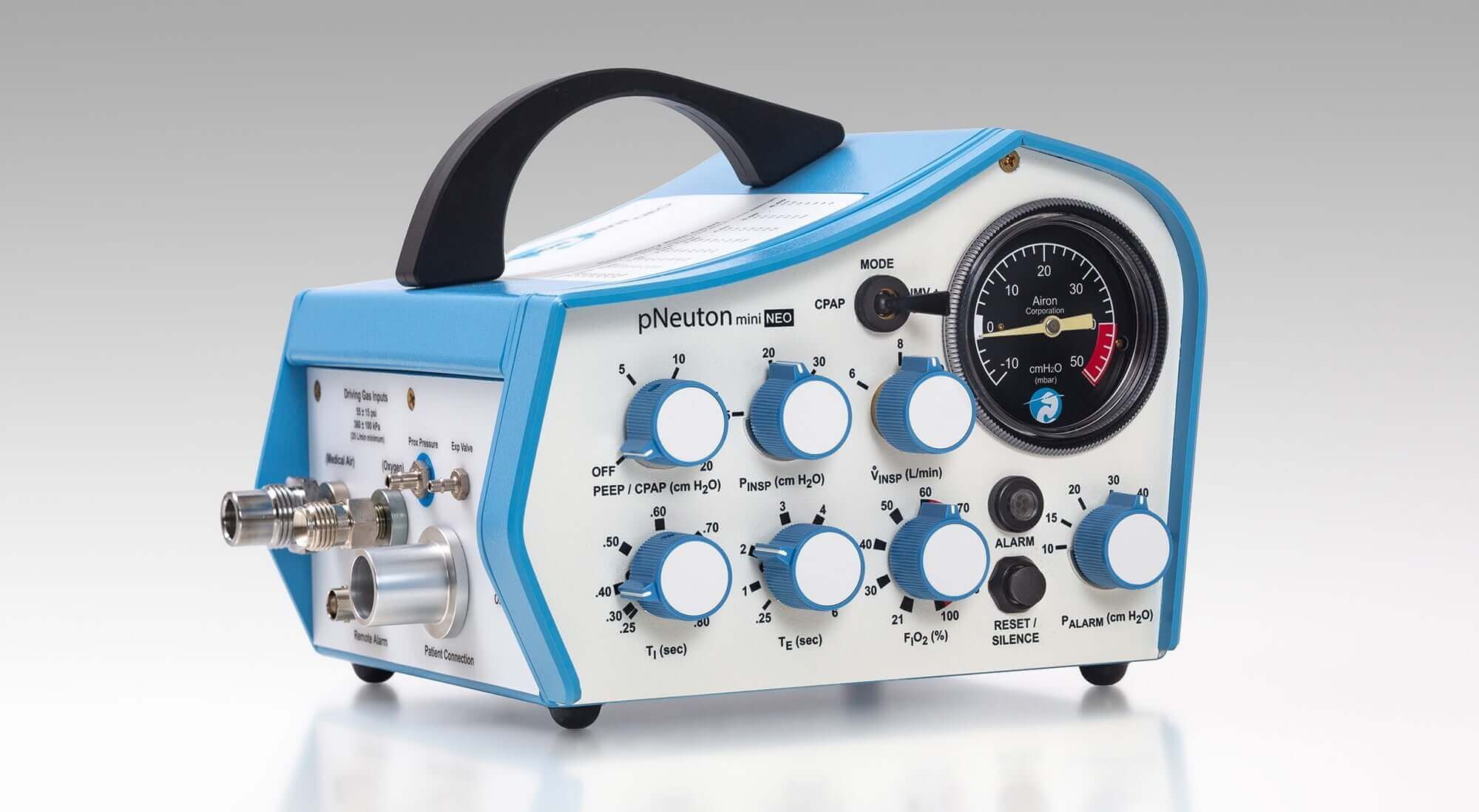

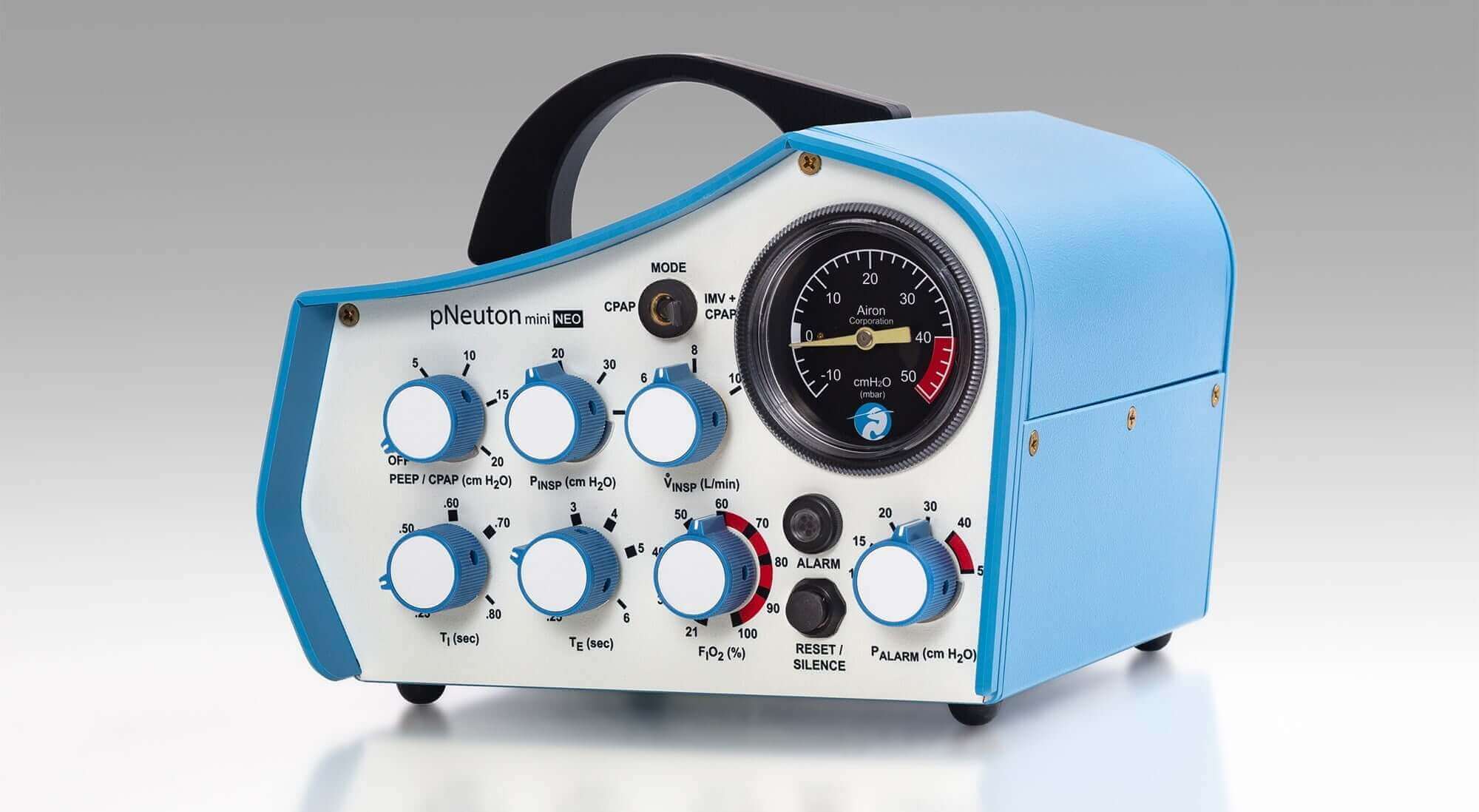

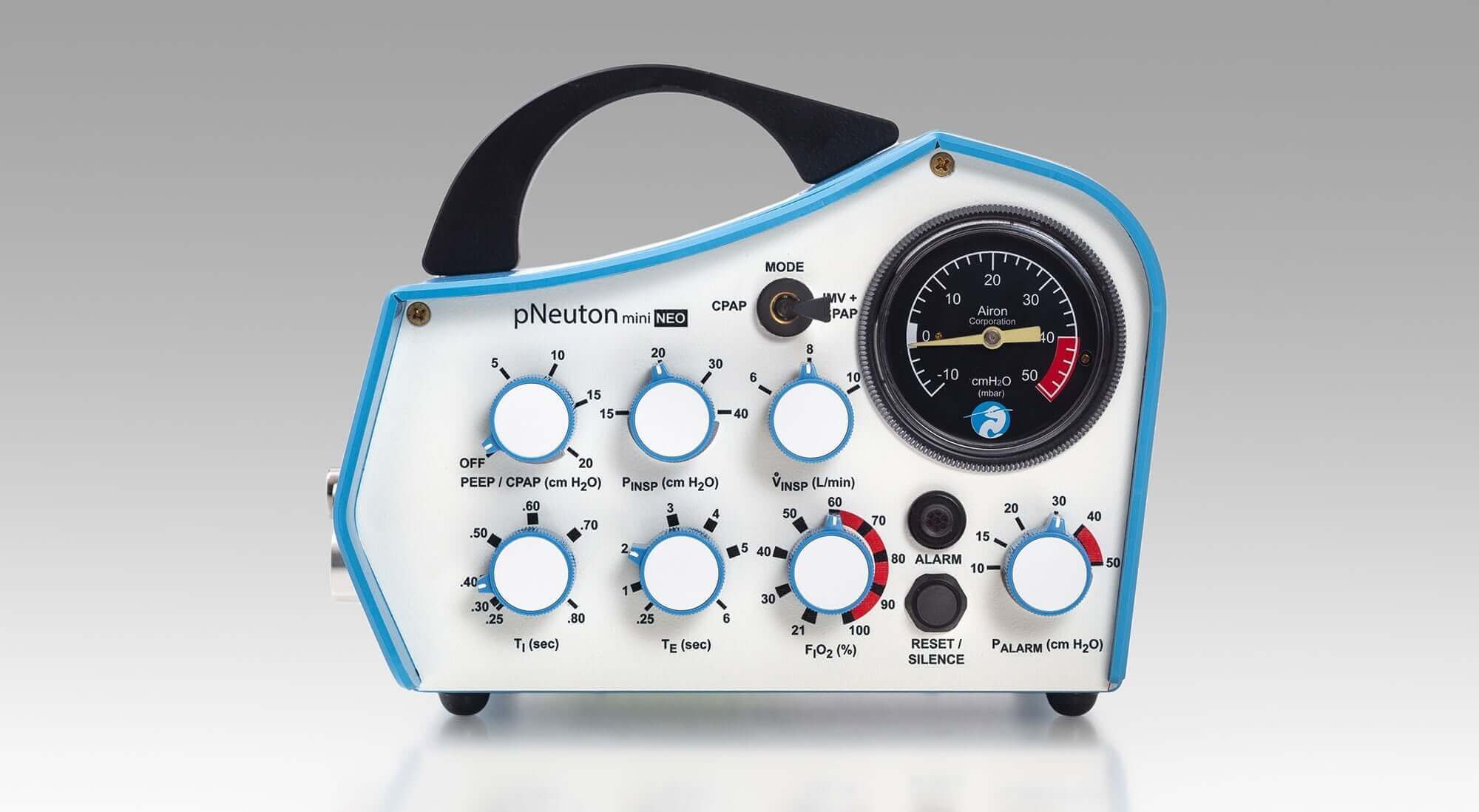

pNeuton mini NEO Ventilator

Jump to:

Neonatal critical life support ventilation and CPAP when and where it’s needed.

The pNeuton mini NEO is the only fully pneumatic, portable ventilator for neonates with CPAP, oxygen mixing, and patient alarms. The mini NEO is a small, lightweight ventilator with precise timing and pressure controls designed for use on patients from 400 grams to 20 kilograms.

UNIQUE ADVANTAGES

Fully pneumatic – No batteries or electricity needed
Invasive or non-invasive ventilation
Built-in oxygen blender, and precise timing & pressure controls
Ideal for air, ground, or intra-hospital transport
MRI compatible up to 3T – can be placed next to the magnet with remote alarm
Small, lightweight, portable
Easy-to-use controls
Made in Melbourne, Florida, USA

APPLICATIONS:

pNeuton mini NEO Ventilator is designed for

• ER
• MRI
• OR
• NICU
• Air, ground, or Intra-hospital transport

Ordering information

Benefits

For the patient

One ventilator for transport and MRI/diagnostic procedures provides stability and safety with no change in patient circuit required
Switch from CPAP nasal prongs/face mask to mechanical ventilation seamlessly and without interruption
A choice of continuous flow settings to provide the right ventilation for the size of your patient with the least amount of expiratory flow resistance
Adjustable oxygen delivery from 21% to 100% to precisely match patient oxygen requirements

For You, the Healthcare provider

Night visible manometer to monitor patient pressure and effort
Calibrated controls for precise and easy operation
MRI conditional up to 3 T – with no gauss line magnet separation restrictions and an optional remote alarm output for the control room
Patient disconnect and high-pressure alarms that work during non-invasive and invasive ventilation
Rugged and tested to meet airworthiness standards
Oxygen/air powered – no electrical connection or batteries
Protection for the caregiver from patient exhalation using the bacteria / viral filter

For Your budget

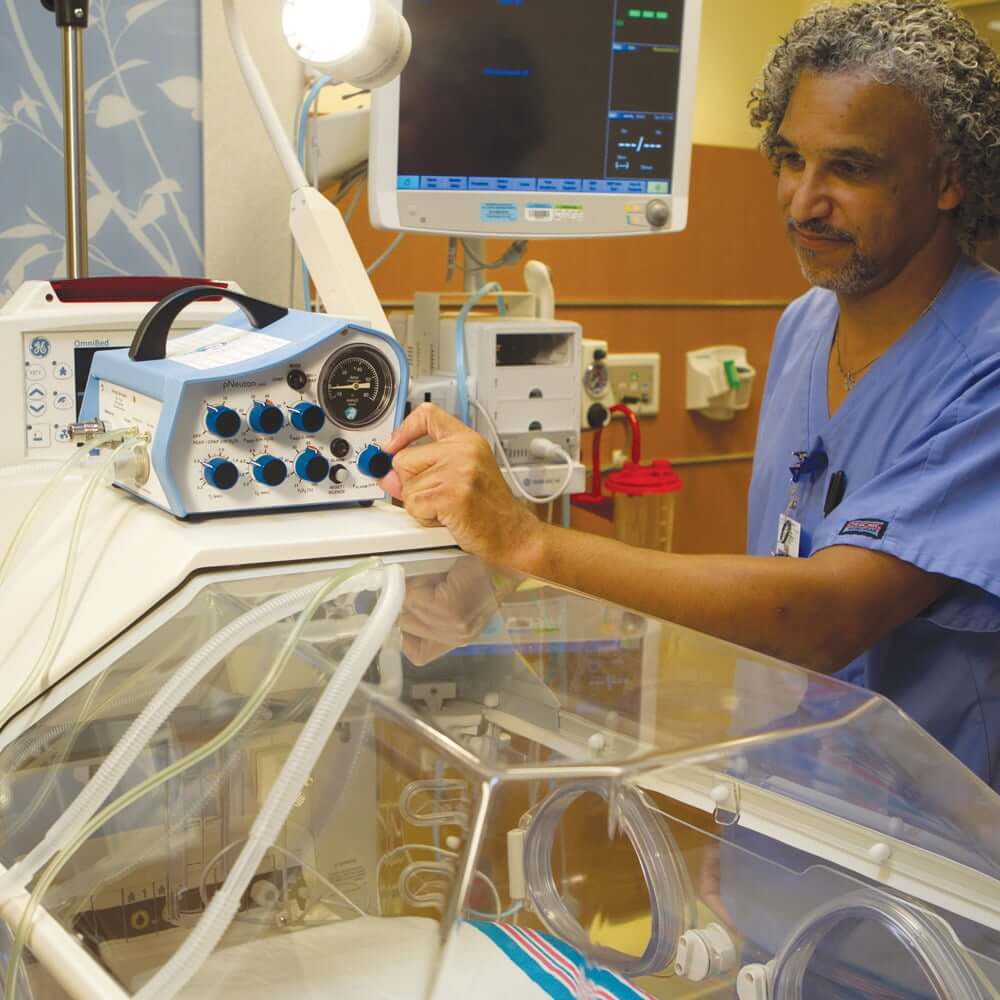

Lightweight and portable with mounting bracket to any patient care incubator/bed
Switch from invasive ventilatory support to non-invasive with just a simple change of the patient interface
No batteries or electronics decrease preventative maintenance costs
Minimal oxygen consumption to maximize transport times

Product videos

Additional information & Resources

Pneumatically powered for use on neonates and infants
Patient range: 400 gram to 20 kilogram
Modes: CMV, IMV + CPAP or CPAP only – continuous flow pressure limited ventilation
miniFlow Patient Interface supports nasal prong/mask application
Pressures displayed on manometer
MRI conditional: static magnetic field of 3 T or less, maximum spatial gradient magnetic field of 720-gauss/cm or less, no gauss line restriction

AUDIBLE AND VISUAL ALARMS

All pneumatic alarm system (no batteries – requires minimum 30 psi / 2 bar gas supply pressure)
Remote alarm output connection
Patient circuit disconnection
- Automatic reset when alarm condition resolves
- 10-second response, 25-second silence/reset button
- Pressure: less than 3 cm H2O
High pressure – independently adjustable from Peak Pressure
Low gas source pressure
- If either source gas drops below 40 psi (2.8 bar)
- Continues operation as long as oxygen is available

Gas consumption

flow setting + 3 L/min oxygen

Input gas requirement (oxygen and medical air)

55 psi ± 15 psi (3.8 bar ± 1 bar) each gas

Weight

9lbs. (4kg)

Meets International Standards for transport ventilators:
- ASTM F1100-90 – Ventilators Intended for Use in Critical Care
- ISO 10651-3:1997 – Lung Ventilators For Medical Use – Particular requirements for emergency and transport ventilators
- Airworthiness: RTCA DO-160G – Environmental Conditions and Test Procedures for Airborne Equipment, as applicable

Inspiratory Time

0.25 to 0.8 seconds

Expiratory time

0.25 to 6 seconds

Continuous Flow

6, 8, or 10 L/min

Peak Pressure

15 to 40 cm H2O (mbar)

PEEP/CPAP

0 to 20 cm H2O (mbar)

Oxygen

21 to 100% ± 3%, requires oxygen and medical air source

Regulatory Compliance

International Regulatory Compliance Information

Under regulatory compliance, our goal is to take steps to comply with relevant laws, policies, and regulations for medical device manufacturing and marketing Airon products. All Airon products are designed, manufactured, and supported based upon sound quality procedures. Every device is CE marked as well as USA FDA cleared.

Product Certification and Approvals

USA – FDA Free Sale Certificate – Certificate to Foreign Government

Canada – Medical Device Licenses
pNeuton ventilator license | patient circuit license

Europe – CE Marking certificates – Airon EC Certificate

Europe – Declarations of Conformity

USA – FDA 510(k) cleared
pNeuton mini

pNeuton mini NEO Sales Sheet: English

pNeuton mini NEO Operational Verification Procedure: English

pNeuton mini NEO Operator’s Manual: English

Product Comparison Chart: English

Preventative Maintenance Program: English

MRI Certification pNeuton Ventilators: English

Compliance with US Army Airworthiness Standards: English

pNeuton Bi-level Pressure Ventilation: English

Work of Breathing Comparison: English

Respiratory Care Test Comparison: English

pNeuton for disaster preparation: English

pNeuton mini Manual Breaths with Bunnell Jet: English

NBC filter with pNeuton ventilators: English

pNeuton for disaster preparation: English

Ordering Information

Ordering information for the pNeuton mini NEO Ventilator, it’s accessories and more.

Customer Service Email:

[email protected]

20041 pNeuton mini NEO ventilator, device only.

20043 pNeuton mini NEO USA Startup Kit; everything you need to get started using your new ventilator.

Kit includes:

(1) pNeuton mini NEO Ventilator
(1) DISS high pressure oxygen hose, 8 foot, green
(1) DISS high pressure medical air hose, 8 foot, yellow
(1) Secure Pole / Rail Mount
(1) Box of 58031 patient circuits – 6 foot, infant, single patient use, qty 15

20042 pNeuton mini NEO International Startup Kit; everything you need to get started using your new ventilator.

Kit Includes:

(1) pNeuton mini NEO Ventilator
(1) high pressure oxygen hose, 2.4m, white, DISS connection on one end, customer specifies probe for other end (DIN, BOC, AGA or NIST)
(1) high pressure medical air hose, 2.4m, white, DISS connection on one end, customer specifies probe for other end (DIN, BOC, AGA or NIST)
(1) Secure Pole / Rail Mount
(1) Box of 58031 patient circuits – 1.8m, infant, single patient use, qty 15

58031 Neonatal / infant, disposable, single use, 10mm ID, 6 foot (1.8m), qty 15
58035 Child / pediatric, disposable, single use, 15mm ID, 6 foot (1.8m), qty 15
58201 Neonatal / infant, disposable, single use, 10mm ID, 8 foot (2.4m), qty 10

SAFETY NOTE: Only Airon manufactured patient breathing circuits are approved for use with pNeuton ventilators.

21005 Mobile Stand, MRI compatible. Includes ventilator mounting plate and four (4) E cylinder holders for oxygen & medical air.
21018 Secure Pole / Rail Mount with ventilator mounting plate. *Meets European EN 1789 requirements.

21002 Rigid Wall Test Lung, 1 liter

21051 Oxygen Regulator, MRI compatible, high pressure D / E cylinders
21052 Medical Air Regulator, MRI compatible, high pressure D / E cylinders
21054 Manifold, 3 way, standard DISS oxygen connections, 1 oxygen and 1 medical air manifold
21050 Manifold, 3 way, On/Off toggles, 1 oxygen and 1 medical air manifold
21071 Oxygen Cylinder, E size, MRI compatible
21072 Medical Air Cylinder, E size, MRI compatible

Browse our online catalog or read through our downloadable brochure

The pNeuton ventilators/CPAP systems are critical care devices designed for use by healthcare professionals under the direction of a physician or healthcare provider.
